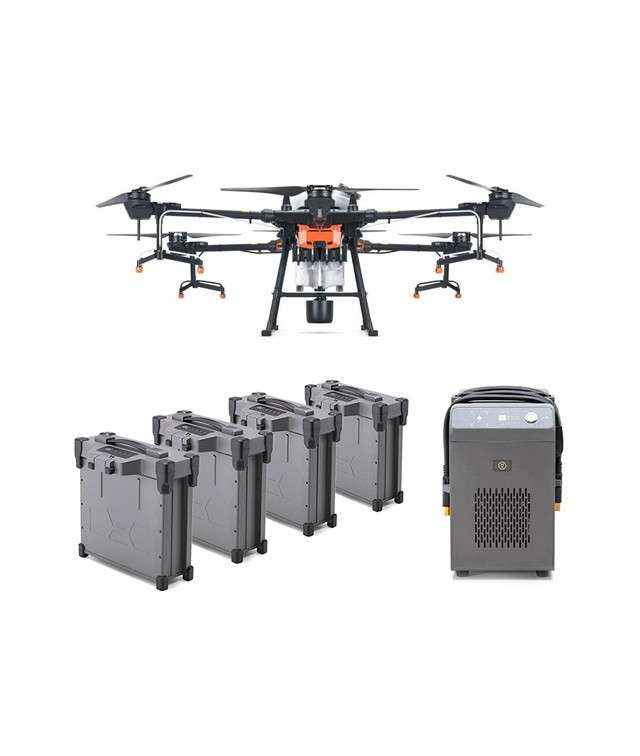

DJI Agras T20 Combo Agriculture Drone with 4 Batteries and Charger

Agricultural Drones> Drones SKU: N/A

20L Spray Tank;
Autonomous High-Precision Operation;
IP67 Rating for Core Modules;
Omnidirectional Digital Radar;
Real-Time Visual Monitoring System;
AI Intelligent Agriculture Engine.

$7,650.00

Compare

Description
Reviews (0)

Description

Agras T20
Flight Parameters
Total Weight (Excluding battery)	21.1 kg
Standard Takeoff Weight	42.6 kg
Max Takeoff Weight	47.5 kg (at sea level)
Max Thrust-Weight Ratio	1.70 (with a takeoff weight of 47.5 kg)
Hovering Accuracy (With a strong GNSS signal)	D-RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm D-RTK disabled: Horizontal: ±0.6 m, Vertical: ±0.3 m (Radar module enabled: ±0.1 m)
RTK/ GNSS Operating Frequency	RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5 ^[1] GNSS: GPS L1, GLONASS F1, Galileo E1 ^[1]
Max Power Consumption	8300 W
Hovering Power Consumption	6200 W (with a takeoff weight of 47.5 kg)
Hovering Time^[2]	15 min (takeoff weight of 27.5 kg with a 18000 mAh battery) 10 min (takeoff weight of 42.6 kg with a 18000 mAh battery)
Max Tilt Angle	15°
Max Operating Speed	7 m/s
Max Flying Speed	10 m/s (with a strong GNSS signal)
Max Wind Resistance	8 m/s
Max Service Ceiling Above Sea Level	2000 m
Recommended Operating Temperature	0° to 40°C
Airframe
Max Diagonal Wheelbase	1883 mm
Dimensions	2509×2213×732 mm (Arms and propellers unfolded) 1795×1510×732 mm (Arms unfolded and propellers folded) 1100×570×732 mm (Arms and propellers folded)
Propulsion System – Motor
Stator Size	100×15 mm
Weight	666 g
Propulsion System
KV	75 rpm/v
Max Thrust	13.5 kg/rotor
Max Power	2400 W/rotor
Weight (Single propeller)	90 g
Propulsion System – Propellers
Diameter × Pitch	33×9 in
Propulsion System – ESC
Max Working Current (Continuous)	40 A
Max Working Voltage	58.8 V(14S LiPo)
FPV Camera
FOV	Horizontal: 98°, Vertical: 78°
Resolution	1280×960 30fps
FPV Spotflight
Max Brightness	12 lux at 5 m of direct light
Spraying System
Spray Tank Volume	Rated: 15.1 L, Full: 20 L
Operating Payload	Rated:15.1 kg, Full:20 kg
Spraying System – Nozzle
Nozzle Model	SX11001VS(standard) SX110015VS(optional) XR11002VS(optional)
Quantity	8
Max Spray Rate	SX11001VS: 3.6 L/min SX110015VS: 4.8L/min XR11002VS: 6 L/min
Droplet Size	SX11001VS: 130-250 μm SX110015VS: 170-265 μm XR11002VS: 190-300 μm (related to the actual working environment, spraying flow, etc.)
Spray Width	4-7 m (8 nozzles, at a height of 1.5 – 3 m above crops)
Spraying System – Flow Meter
Measurement Range	0.25-20 L/min
Error	<±2%
Measurable Liquid	Conductivity > 50 μS/cm (Liquids such as water or pesticides that contain water)
High Precision Radar Module
Model	RD2428R
Operating Frequency	CE (Europe)/(United States): 24.00 GHz-24.25 GHz MIC (Japan)/KCC (Korea): 24.05 GHz-24.25 GHz
Power Consumption	18W
EIRP	MIC/KCC/CE /FCC: <20 dBm
Altitude Detection & Terrain Follow^[3]	Altitude detection range: 1-30 m Stabilization working range:1.5-15 m Maximum slope of hill mode: 35°
Obstacle Avoidance System^[3]	Altitude detection range: 1.5-30 m FOV: Horizontal: 360°, Vertical: ±15° Condition: Relative altitude higher than 1.5 m, operation speed lower than 7 m/s Safe distance: 2.5m (distance between the propeller tip and the obstacle after the aircraft stops) Obstacle-avoiding direction: Omnidirectional obstacle sensing operates horizontally and covers 360°
IP Rating	IP67
T20 Intelligent Flight Battery
Model	AB3-18000mAh-51.8V
Weight	6.4 kg (approximately)
Discharge Rate	9 C
IP Rating	IP54
Capacity	18000 mAh
Voltage	51.8 V
Remote Controller
Model	RM500-AG
OcuSync 2.0 Operating Frequency^[4]	2.4000-2.4835 GHz 5.725-5.850 GHz
OcuSync 2.0 Effictive Transmission Distance(Unobstructed, free of interference)	SRRC/MIC/KCC/CE: 3 km NCC/FCC: 5km (Operation height: 2.5 m)
OcuSync 2.0 Transmission Power (EIRP)	2.4 GHz SRRC/CE/MIC/KCC: 18.5 dBm, FCC: 25.5 dBm; 5.8 GHz SRRC/FCC: 25.5 dBm
WIFI Protocol	Wi-Fi Direct, Wireless Display, 802.11a/g/n/ac, and Wi-Fi with 2×2 MIMO is supported
Wi-Fi Operation Frequency Range^[4]	2.4000-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz
WIFI Transmission Power (EIRP)	2.4 GHz SRRC/CE: 18.5 dBm; FCC/MIC/KCC: 20.5 dBm; 5.2 GHz SRRC/FCC/CE/MIC: 14 dBm; KCC:10 dBm; 5.8 GHz SRRC/FCC: 18 dBm; CE/KCC: 12 dBm
Bluetooth Protocol	Bluetooth 4.2
Bluetooth Operating Frequency	2.4000-2.4835 GHz
Bluetooth Transmission Power (EIRP)	SRRC/MIC/FCC/CE/KCC: 6.5 dBm
GNSS	GPS+GLONASS
Display Device	5.5-inch screen 1920×1090 pixels Brightness: 1000 cd/m² Android System
Random Access Memory, RAM	4GB LPDDR4
Storage Capacity	ROM 32GB + microSD, supports microSD cards with a capacity of up to 128 GB and R/W speed up to UHS-I Speed Grade 3
HDMI	HDMI 1.4
Supported Aircraft	Agras T20
Power Consumption	18 W
Operation Temperature Range	‐10° to 40°C
Storage Temperature Range	< 1 month: -30° to 60°C 1-3 months: -30° to 45°C 3-6 months: -30° to 35°C > 6 months: -30° to 25°C (Built-in battery power 40% to 60%)
Charging Temperature	5° to 40°C
Remote Controller – Internal Battery
Battery Type	18650 Li-ion (5000 mAh @ 7.2 V)
Working Time	2 hours
Charging Time	2.5 hours (using a standard USB power adapter rated 12 V/2 A)
Power Supply Current/Voltage (USB-A port)	5 V/ 1.5 A
Model	WB37-4920mAh-7.6V
Remote Controller – Intelligent Battery
Charge Type	Supports USB power fast charge adapters rated 12 V/2 A
Battery Type	2S LiPo
Capacity	4920 mAh
Voltage	7.6 V
Energy	37.39 Wh
Charging Temperature	5° to 40°C
Charging Time	2 hours
Remote Controller – Intelligent Battery Charging Hub
Model	WCH2
Input Voltage	17.3-26.2 V
Output Voltage and Current	8.7 V, 6 A
Operating Temperature	5° to 40°C
Remote Controller – Intelligent Battery Charging Hub Power Adapter
Model	A14-057N1A
Input Voltage	100 – 240 V, 50/60 Hz
Output Voltage	17.4 V
Rated Power	57 W
