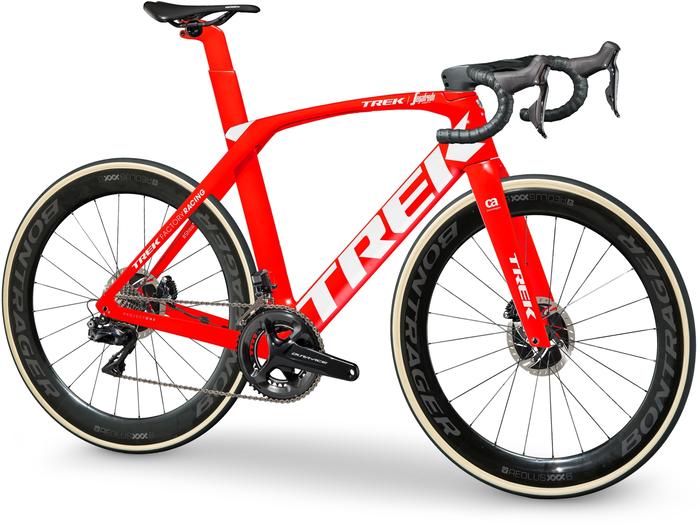

TREK MADONE SLR 9 ROAD BIKE

Name: TREK MADONE SLR 9 ROAD BIKE
SKU: 9359
Availability: InStock

Madone SLR 9 Disc is the ultimate aero superbike. An all-new ultralight 800 Series OCLV Carbon frame, adjustable compliance, and a Shimano Dura-Ace Di2 electronic drivetrain make it the final stop in your search for an incredibly fast, top-of-the-line aero road bike.

Add to wishlist

$1,000.00

Compare

Description
Reviews (0)

Description

*spec applies to all sizes unless otherwise noted

Frameset

Frame	800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Fork	Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Frame fit	H1.5 Race

Wheels

Wheel front	Bontrager Aeolus XXX 4, OCLV Carbon, Tubeless Ready, 21mm rim width, 47mm rim depth, 100x12mm thru axle
Wheel rear	Bontrager Aeolus XXX 4, OCLV Carbon, Tubeless Ready, 21mm rim width, 47mm rim depth, 142x12mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager R4 320 Handmade Clincher, Hard-Case Lite, 320 tpi, 700x25c
Rim strip	Bontrager Aeolus XXX rim strip

Drivetrain

Shifter	Shimano Dura-Ace Di2 R9170, 11 speed
Front derailleur	Shimano Dura-Ace Di2 R9150, braze-on
Rear derailleur	Shimano Dura-Ace Di2 R9150, short cage, 30T max cog
*Crank	Size: 47 Shimano Dura-Ace R9100-P Power Meter, 52/36, 165mm length
	Size: 50, 52 Shimano Dura-Ace R9100-P Power Meter, 52/36, 170mm length
	Size: 54, 56 Shimano Dura-Ace R9100-P Power Meter, 52/36, 172.5mm length
	Size: 58, 60, 62 Shimano Dura-Ace R9100-P Power Meter, 52/36, 175mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano Dura-Ace R9100, 11-30, 11 speed
Chain	Shimano Dura-Ace 9000, 11 speed

Components

Saddle	Bontrager Aeolus Pro, carbon rails, 145mm width
*Seatpost	Size: 47, 50, 52, 54, 56 Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, short length
*Seatpost	Size: 58, 60, 62 Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, tall length
*Handlebar	Size: 47 Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 38cm width
	Size: 50, 52 Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 40cm width
	Size: 54, 56 Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 42cm width
	Size: 58, 60, 62 Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 44cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 47, 50, 52, 54 Trek Madone aero, invisible cable routing, 7 degree, 90mm length
	Size: 56, 58 Trek Madone aero, invisible cable routing, 7 degree, 100mm length
	Size: 60, 62 Trek Madone aero, invisible cable routing, 7 degree, 110mm length
Brake	Shimano Dura-Ace hydraulic disc, flat mount
Brake rotor	Shimano RT900, 160mm, centerlock

Weight

Weight	56 – 7.80 kg / 17.19 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local retailer.

All measurements provided in cm unless otherwise noted.

Frame size number	Wheel size	A — Seat tube	B — Seat tube angle	C — Head tube length	D — Head angle	E — Effective top tube	G — Bottom bracket drop	H — Chainstay length	I — Offset	J — Trail	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack	Saddle rail height min (w/short mast)	Saddle rail height max (w/short mast)	Saddle rail height min (w/tall mast)	Saddle rail height max (w/tall mast)
47 cm	700c	42.4	74.6°	10.0	72.1°	51.2	7.2	41.0	4.5	6.8	97.2	69.2	37.3	50.7	55.5	61.5	59.0	65.0
50 cm	700c	45.3	74.6°	11.1	72.1°	52.1	7.2	41.0	4.5	6.2	97.4	71.1	37.8	52.1	58.5	64.5	62.0	68.0
52 cm	700c	48.3	74.2°	12.1	72.8°	53.4	7.2	41.0	4.5	5.8	97.7	73.2	38.3	53.3	61.5	67.5	65.0	71.0
54 cm	700c	49.6	73.7°	13.1	73.0°	54.3	7.0	41.0	4.5	5.6	98.1	74.4	38.6	54.1	64.0	70.0	67.5	73.5
56 cm	700c	52.5	73.3°	15.1	73.5°	55.9	7.0	41.0	4.0	5.8	98.3	76.8	39.1	56.3	67.0	73.0	70.5	76.5
58 cm	700c	55.3	73.0°	17.1	73.8°	57.4	6.8	41.1	4.0	5.7	99.2	79.3	39.6	58.1	69.0	75.0	72.5	78.5
60 cm	700c	57.3	72.8°	19.1	73.9°	58.6	6.8	41.1	4.0	5.6	100.1	81.1	39.9	60.1	71.0	77.0	74.5	80.5
62 cm	700c	59.3	72.5°	21.1	73.9°	59.8	6.8	41.2	4.0	5.6	101.0	82.9	40.3	62.0	73.0	79.0	76.5	82
